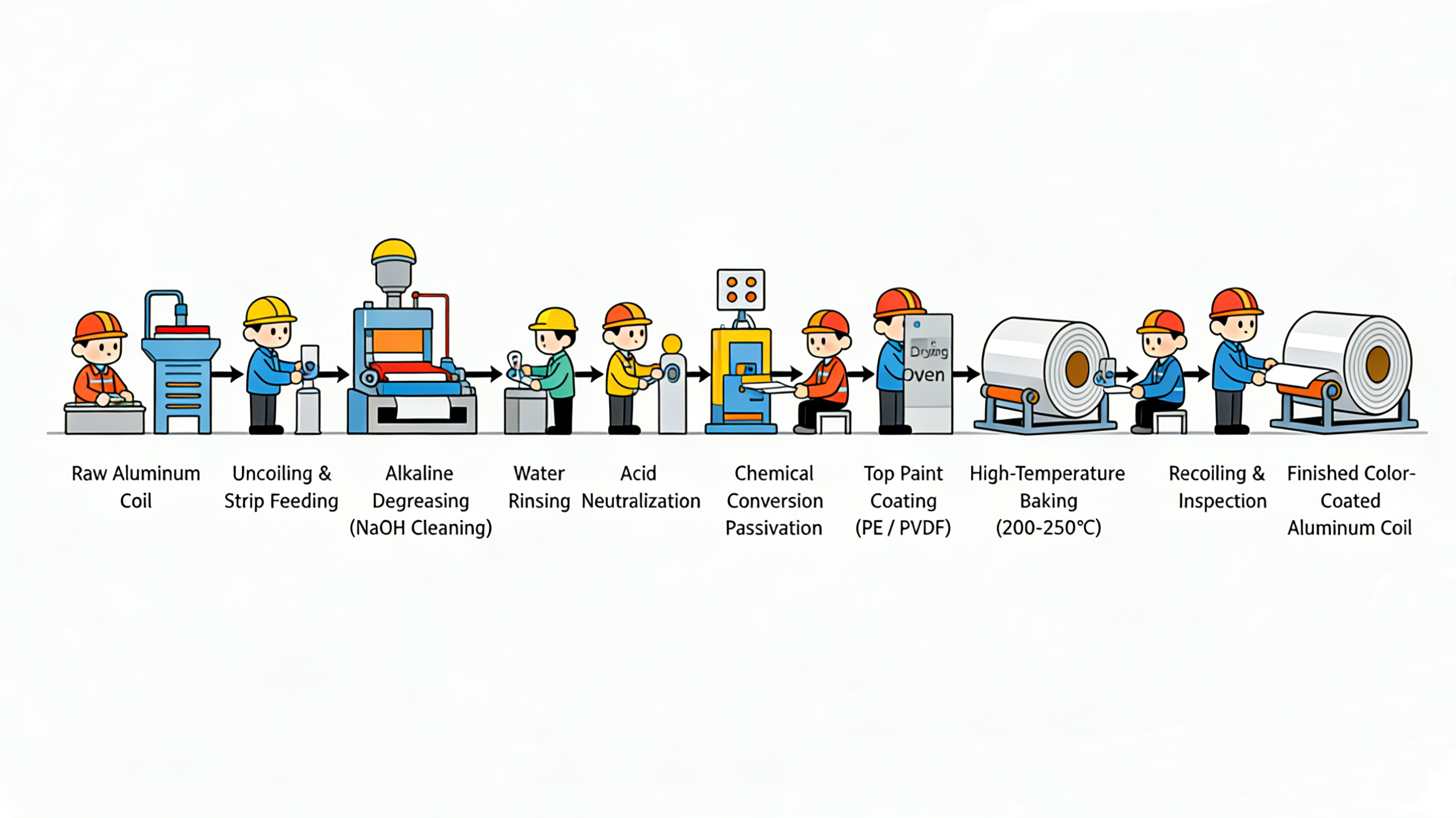

The color-coated aluminum coil, also named Pre-painted Aluminum Coil, is actually a carefully controlled industrial process involving chemical cleaning, surface treatment, coating, baking, and recoiling.
Everything starts with a mill-finished aluminum coil.
Common alloys used for color-coated aluminum include:
3003 aluminum coil
3004 aluminum coil
3105 aluminum coil
5052 aluminum coil
These alloys are chosen because they offer a good balance of corrosion resistance, formability, and strength.
In most factories, the coil is mounted on a hydraulic uncoiler before entering the line.
The aluminum strip begins moving through the coil coating line at a controlled speed.
Depending on the production line, speeds can reach 60–120 meters per minute.
Before coating, the aluminum surface must be completely clean.
So the strip enters a degreasing bath using sodium hydroxide (NaOH).
This step removes:
rolling oil
grease
dust
surface contaminants
Without proper cleaning, the paint adhesion will fail later.
And that’s the kind of defect nobody wants to deal with.
After alkaline cleaning, the strip passes through multiple water rinsing tanks.
This removes chemical residues from the degreasing process.
Usually there are two rinsing stages to ensure the surface is neutral.
Next comes a mild acid treatment.
This neutralizes any remaining alkaline solution and stabilizes the aluminum surface.
This stage also helps improve coating adhesion later in the process.
This is one of the most important steps.
The aluminum strip undergoes chemical conversion coating, sometimes called passivation.
The purpose is to create a thin protective layer that:
improves corrosion resistance
increases paint adhesion
extends coating lifespan
Modern factories often use chrome-free passivation systems to meet environmental regulations.
Before paint is applied, the strip passes through a drying oven.
Moisture must be completely removed.
If water remains on the surface, it can cause coating defects like bubbles or poor adhesion.
Now the coating process begins.
A primer layer is applied using a roller coating system.
Primer thickness usually ranges between: 5–10 microns.
This layer acts as the bonding interface between aluminum and the final paint.
After the primer, the strip receives the top coating layer.

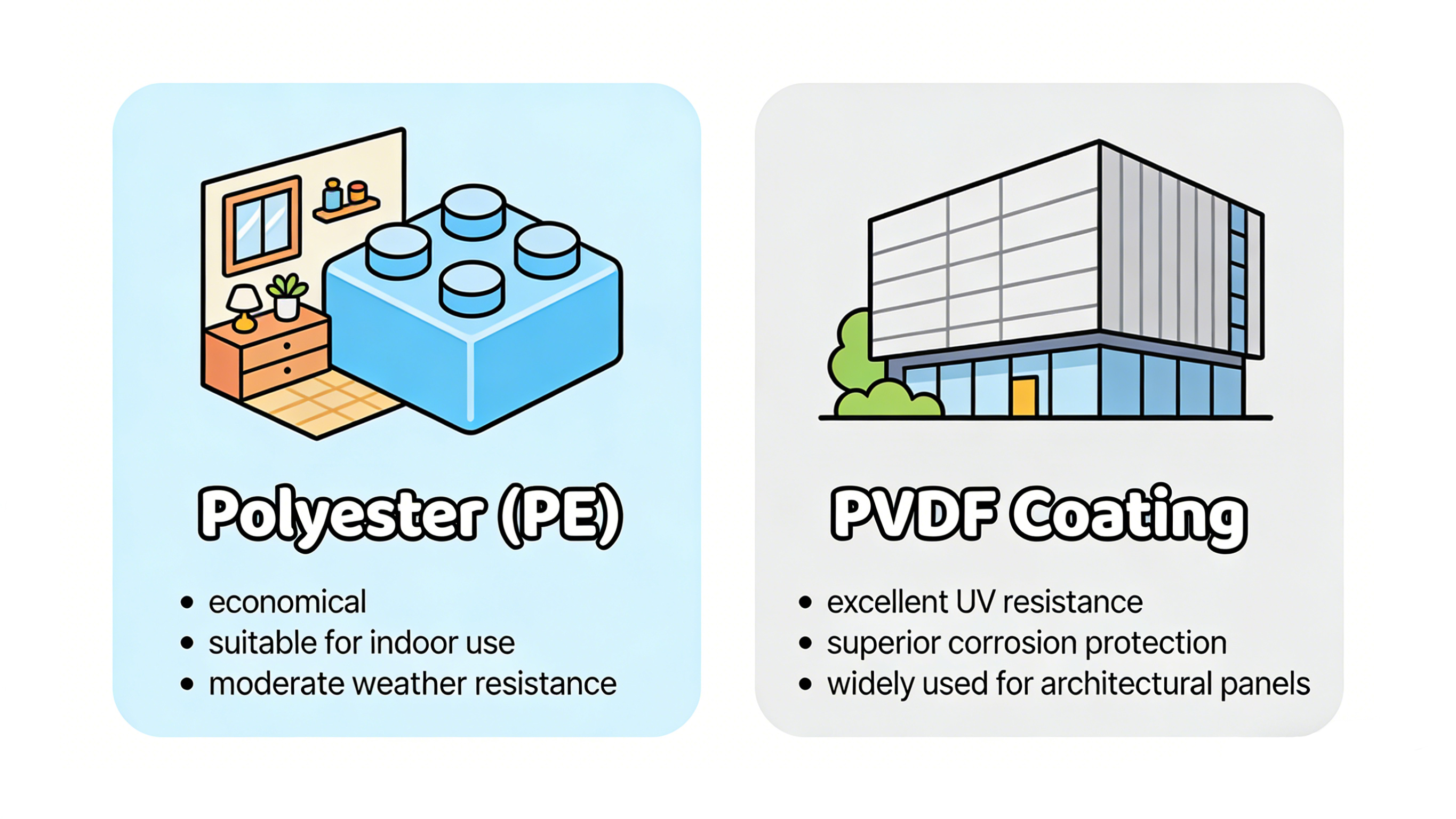

Two common coating types are used:
economical
suitable for indoor use
moderate weather resistance
excellent UV resistance
superior corrosion protection
widely used for architectural panels
Some PVDF coatings can last 20–30 years outdoors without major fading.
After coating, the strip enters a curing oven.
Typical curing temperature:200°C – 250°C.
This heat hardens the paint and bonds it permanently to the aluminum surface.
Most coil coating ovens are tens of meters long, which surprised me the first time I saw one.
Once baking is complete, the strip passes through a cooling section.
The temperature gradually drops so the coating stabilizes.
This step also prepares the strip for recoiling.
Finally, the coated strip is wound into finished color-coated aluminum coils.
Before shipping, manufacturers perform several quality tests:
coating thickness test
adhesion test
color consistency inspection
bending resistance test
Only after these checks does the coil get packaged and shipped.
People sometimes think painted metal is simple.But the coil coating process for aluminum is actually a carefully controlled system.
If even one stage goes wrong—cleaning, passivation, curing—the coating might peel, fade, or corrode prematurely.
And fixing that later?
Actually,nobody wants that job.
