Modern architecture is obsessed with clean lines, bold façades, and sleek exterior surfaces. Walk through any major city and you’ll notice something interesting: the buildings that stand out the most often rely on curtain wall systems. These elegant exterior skins don’t just look impressive—they also play a critical role in protecting structures from weather, improving energy efficiency, and shaping architectural identity.
But here’s the real question: what makes a curtain wall perform flawlessly for decades?
The answer often comes down to one thing—material selection. And more often than not, 3004 aluminum coil is the material engineers and architects trust.
Why? Because it hits that rare sweet spot between strength, formability, corrosion resistance, and cost-efficiency. It’s like finding the perfect balance between toughness and elegance—a material that can carry structural expectations while still delivering visual perfection.

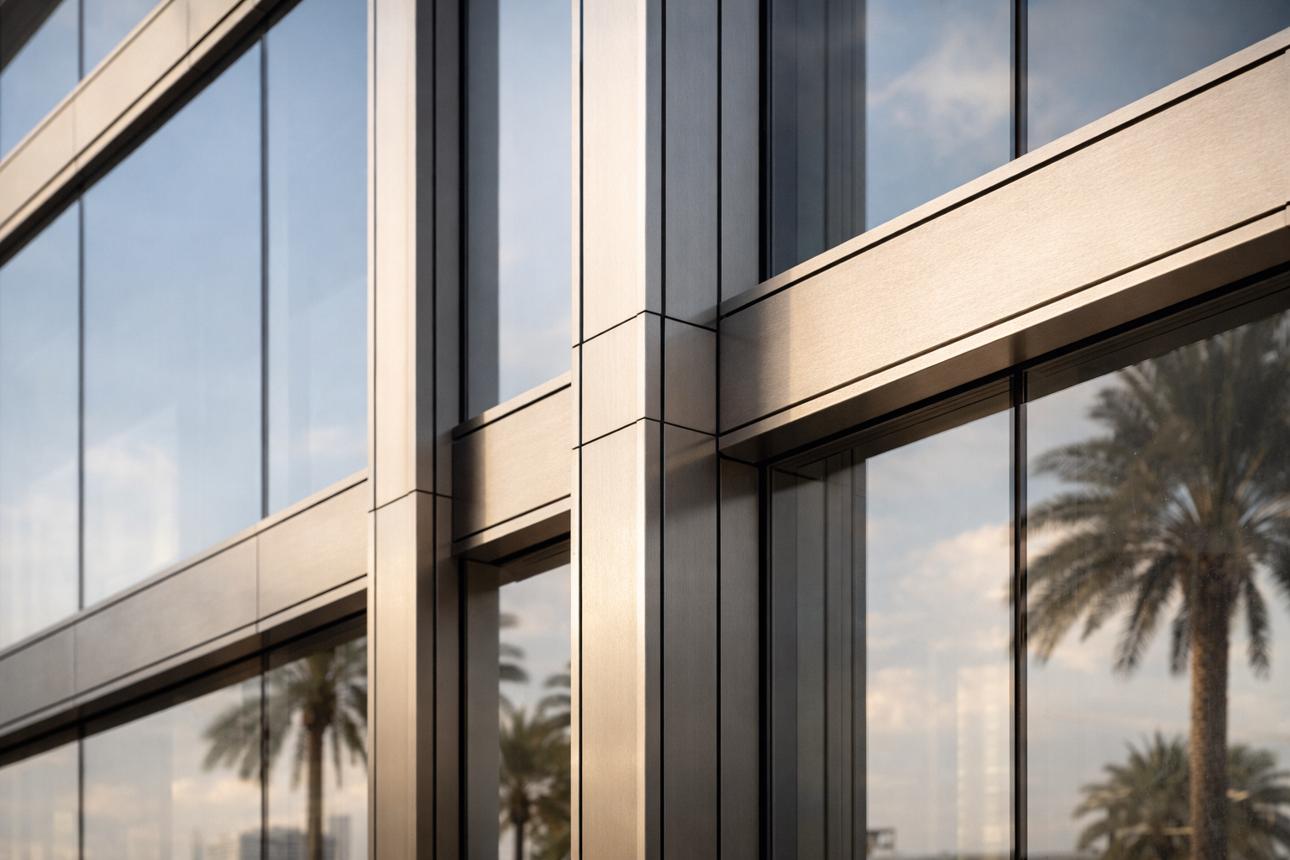

A curtain wall is an exterior cladding system that covers the outer envelope of a building without carrying structural loads from the roof or floors. Think of it as the building’s protective jacket.
Its job is to resist:
Wind pressure
Water infiltration
Thermal expansion
Environmental wear
At the same time, it must maintain visual appeal and dimensional precision.
Choosing the wrong material for curtain walls is a bit like choosing cardboard for a raincoat. It may look fine at first, but over time, exposure will reveal its weaknesses.
Curtain wall panels must stay flat, resist deformation, and survive years of exposure to sunlight, humidity, temperature swings, and pollution.
That’s exactly where 3004 aluminum excels.
3004 belongs to the aluminum-manganese alloy family. It contains manganese and magnesium, which significantly improve its mechanical strength compared to 3003 while maintaining excellent workability.
Typical composition includes:
Element | Percentage |
|---|---|
Aluminum | Balance |
Manganese | 1.0–1.5% |
Magnesium | 0.8–1.3% |
Silicon | ≤0.3% |
Iron | ≤0.7% |
This carefully balanced formula gives 3004 its distinctive performance profile.
Property | 3004 Aluminum Coil |
|---|---|
Tensile Strength | 160–200 MPa |
Yield Strength | 110–145 MPa |
Elongation | 10–20% |
Density | 2.72 g/cm³ |
These numbers tell an important story: 3004 offers stronger structural performance than 3003 without becoming difficult to fabricate.
Curtain walls are constantly under stress. Wind loads, thermal expansion, and building movement all create pressure on panels.
High-rise buildings face substantial wind pressure. Aluminum panels must resist flexing or permanent deformation.
3004’s enhanced yield strength gives it a stronger resistance to panel deflection. That means flatter surfaces, tighter installation tolerances, and improved façade stability.
Imagine a sail in heavy wind. A weak material flaps and deforms. A stronger one holds shape.
That’s the practical difference.
Flatness matters more than many people realize.
Even minor oil-canning effects can ruin the visual consistency of a curtain wall. Because 3004 offers improved rigidity, it minimizes waviness and ensures cleaner panel appearance.
This is particularly valuable in large-format façade systems.
Strength is only half the equation. Exterior cladding also needs long-term corrosion protection.
Urban air contains pollutants, acidic compounds, and moisture. Over time, these can attack low-quality materials.
3004 naturally forms a protective oxide layer that helps resist environmental degradation.
When paired with PVDF coating, it delivers outstanding weather resistance.
In practical applications, properly coated 3004 curtain wall panels can maintain performance and appearance for decades.
That means:
Reduced maintenance
Lower replacement frequency
Better lifecycle value
And that’s what developers care about most.
Strength alone isn’t enough. If a material is difficult to fabricate, production costs rise quickly.
Architectural curtain walls often involve:
Curved panels
Folded edges
Custom geometric profiles
3004 handles these fabrication demands exceptionally well.
It bends cleanly without cracking, even in complex profiles.
3004 supports:
CNC cutting
Punching
Folding
Roll forming
This fabrication versatility allows manufacturers to meet tight design tolerances.
That’s a huge advantage in modern façade systems where precision is everything.
Curtain wall systems depend heavily on coating performance.
PVDF coatings are the gold standard for premium curtain wall applications.
When applied to 3004 aluminum, they provide:
UV resistance
Color retention
Chemical resistance
Gloss stability
This combination ensures a façade looks sharp even after years of exposure.
For projects with tighter budgets, HDP coatings offer an excellent middle-ground solution.
Paired with 3004, HDP delivers strong weatherability while reducing cost compared to PVDF.
For curtain wall systems, thickness matters just as much as alloy choice.
Typical recommendations:
Application | Recommended Thickness |
|---|---|
Standard façade panels | 1.5–2.0 mm |
High-rise curtain walls | 2.0–3.0 mm |
Decorative interior cladding | 1.0–1.5 mm |
Proper thickness ensures structural reliability.
Architects love flexibility.
3004 allows bold creativity without sacrificing structural integrity. It supports modern trends like:
Seamless large panels
Curved metal façades
Precision shadow lines
Reflective architectural finishes
It’s where engineering meets design.
As architecture evolves, façade materials must become lighter, stronger, and more sustainable.
3004 is well-positioned for this future because it offers:
Recyclability
Lightweight efficiency
Long service life
Excellent performance-to-cost ratio
That’s exactly what modern construction demands.
When selecting material for modern curtain wall systems, the decision should never be based on price alone.
It should be about long-term value.
3004 aluminum coil stands out because it balances all the essential performance factors:
Structural strength
Corrosion resistance
Fabrication flexibility
Coating compatibility
Cost efficiency
It’s strong enough to perform, flexible enough to fabricate, and affordable enough to make engineering sense.
That’s why, for modern curtain wall systems, 3004 aluminum coil continues to be the preferred choice.
